COB MENELAUS RGBU WFL

Using high MCD COB LED(chip on board) to achieve much more brightness and excellent ventilations and lowest energy consumption, with surface light source function plus the molded polishing/mirror finish reflector, specially designed frost plano-convex lens, making light projections perfectly focused, the brightness more than two times as much as previously done, covering far distance, really ideal for lighting stages, BARS, DISCO HALLS, SMALL SHOWS, CABARETS, MUSIC SHOPS, MOBILE DJs, etc.
Equipped with 90W RGBU four in one COB high MCD LED
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
8 sub menus with serial numbers for easy operations

Fans running speeds adjustable by the programming for less noise

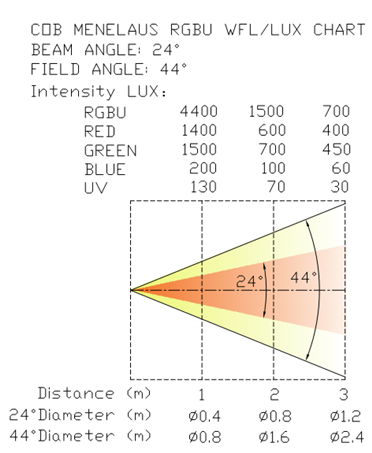

Beam angle 24 degrees,field angle 44 degrees

4/6/9 DMX channel modes

Blue LCD display

Du hanging bracket included,3-pin XLR In/Out
Shutter: Pulse effect; random strobe slow to fast
Power Consumption: 120W max
Dimensions (LxWxH):32*30*22cm/hanging brackets placed vertically
Weight: 2.30kgs

DMX FUNCTIONS: 4-CHANNEL MODE

Channel 1 – red from darkness to full brightness

Channel 2 – green from darkness to full brightness

Channel 3 –blue from darkness to full brightness

Channel 4 –UV from darkness to full brightness



DMX FUNCTIONS: 6-CHANNEL MODE

Channel 1 – red from darkness to full brightness

Channel 2 – green from darkness to full brightness

Channel 3 –blue from darkness to full brightness

Channel 4 –UV from darkness to full brightness

Channel 5 –dimmer from darkness to full brightness

Channel 6 –strobe



DMX FUNCTIONS: 9-CHANNEL MODE

Channel 1 – red from darkness to full brightness

Channel 2 – green from darkness to full brightness

Channel 3 –blue from darkness to full brightness

Channel 4 –UV from darkness to full brightness

Channel 5 –dimmer from darkness to full brightness

Channel 6 –strobe

Channel 7 –color macros

Channel 8 –color changing from slow to fast

Channel 9 –color fade from slow to fast
