LED COLONY

LED COLONY is one of the classical club DJ effects designed and created uniquely, really ideal for clubs, bars, disco halls, small events, musical shops, mobile DJs, cabarets, etc.

LED white strobe combined with red/green laser +RGBWA rotating derby effects into one fixture,outputs covering large areas

*IEC AC IN/OUT to daisy chain power

*LED display

*RGBWA 5-in-1 LED with 4 reflecting dishes to create derby by rotating, red/green laser and white strobe effect

*Laser projecting thousands of red and green laser beams, falling stars,geometric figures

*Equipped with 3*high MCD 5 IN 1 RGBWA 10W LED+8*high MCD 3W WHITE led+100MW red laser/100mw green laser

AC 100-240V 50/60Hz

Power consumption: 80W

separate strobe,strobe Rate: 0 to 30 Hz


DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

3/5/8 DMX channel modes

Displaying off 5 seconds automatically after finishing sets of the fixture

Beam Angle (strobe): 15°
Field Angle (strobe): 30°
Coverage Angle (laser): 105°
Coverage Angle (colony): 70°
Illuminance (strobe): 900 lux @ 2 m
Environmental temperature: -20℃ to 40℃

Hanging brackets included

Net weight: 4.30Kgs

Dimensions:322*305*241mm(L*W*D)



DMX FUNCTIONS



3-CHANNEL MODE
Channel 1 – laser color selections
Channel 2 –laser strobe
Channel 3 –laser effect wheel rotating

0-2        stop

3-127      rotating clockwise

128-255    counter rotating clockwise



5-CHANNEL MODE
Channel 1 –LED patterns
Channel 2 –strobe
Channel 3 –reflector dishes rotating

0-2        stop

3-127      rotating clockwise

128-255    counter rotating clockwise

Channel 4 –white led effects
Channel 5 –white led strobe

8-CHANNEL MODE
Channel 1 – laser color selections
Channel 2 –laser strobe
Channel 3 –laser effect wheel rotating

0-2        stop

3-127      rotating clockwise

128-255    counter rotating clockwise

Channel 4 –LED patterns
Channel 5 –strobe
Channel 6 –reflector dishes rotating

0-2        stop

3-127      rotating clockwise

128-255    counter rotating clockwise

Channel 7 –white led effects
Channel 8 –white led strobe

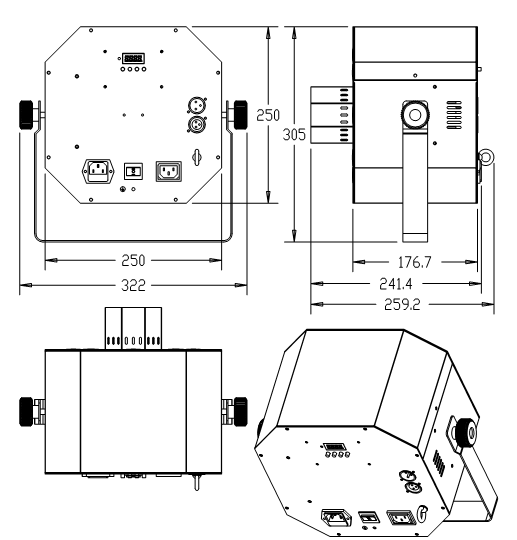

尺寸(DIMENSIONS):
