ALPHACOME
STAGE LIGHT
ALPHACOME is one of the classical LED fixtures designed and created uniquely, ideal for professional use
*battery powered LED wash light
*continuous running 8 hours at full output,5-hour quick recover time for frequent use
*Power in powerCON/blue, Power out powerCON/grey equipped;
*blue LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates:23K and real flicker free;
*four dimming modes: linear, S-curve, Square law, Inverse square law;
*molded aluminium plus silent fans for excellent ventilations;
*beam angle15°/25°/40°optional
*equipped with 12*high MCD RGBWA/UV 6 IN 1 12W LEDs,total 144W,50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
AC 100-240V 50/60Hz
Power consumption: 150W
beam angle15°/25°/40°optional
equipped with 12*high MCD RGBWA/UV 6 IN 1 12W LEDs,total 144W,50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
IR & WL DMX control.
RDM control for remote DMX addressing
11A/11B/14 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Battery: Lithium ion
Battery life: all on 8 hours, single led 20 hours
IP Rating: IP20,indoor use
Hanging brackets included: floor stand
Net weight: 4.40kgs
Dimensions: 305*332.2*123.5mm(L*W*D)(hanging bracket placed vertically)k
DMX FUNCTIONS
11-CHANNEL MODE A
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 – blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV from darkness to full brightness
Channel 7 – master dimmer from darkness to full brightness
Channel 8 –strobe
Channel 9 –dimmer modes
0-50 not occupied:the dimmer mode set by LCD display works
51-101 linear
102-152 square law
153-203 inverse square law
204-255 S-curve
Channel 10 –dimmer duration
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
Channel 11 –sound active
0-127 off
128-255 sound active
11-CHANNEL MODE B
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 – blue from darkness to full brightness
Channel 4 –strobe
Channel 5 – white from darkness to full brightness
Channel 6 – amber from darkness to full brightness
Channel 7 – UV from darkness to full brightness
Channel 8 – master dimmer from darkness to full brightness
Channel 9 –dimmer modes
0-50 not occupied:the dimmer mode set by LCD display works
51-101 linear
102-152 square law
153-203 inverse square law
204-255 S-curve
Channel 10 –dimmer duration
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
Channel 11 –sound active
0-127 off
128-255 sound active
14-CHANNEL MODE
Channel 1 – red from darkness to full brightness
Channel 2 – green from darkness to full brightness
Channel 3 – blue from darkness to full brightness
Channel 4 – white from darkness to full brightness
Channel 5 – amber from darkness to full brightness
Channel 6 – UV from darkness to full brightness
Channel 7 – master dimmer from darkness to full brightness
Channel 8 –strobe
Channel 9 –dimmer modes
0-50 not occupied:the dimmer mode set by LCD display works
51-101 linear
102-152 square law
153-203 inverse square law
204-255 S-curve
Channel 10 –dimmer duration
0-50 0 second
51-101 1 second
102-152 2 seconds
153-203 3 seconds
204-255 5 seconds
Channel 11 –color macros
Channel 12 –color changing
Channel 13 –color fades
Channel 14 –sound active
0-127 off
128-255 sound active

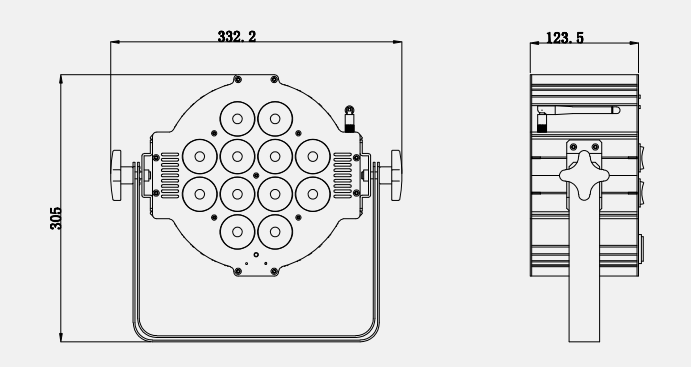

尺寸（DIMENSIONS):
