APOLLO 400 WFL ZOOMING WW PLUS

STAGE LIGHT

One of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index):Ra:93

*Extruded aluminium housing looking comely, streamline forming;

*Extruded aluminium housing looking comely, streamline forming;

*Molded engineering ABS end housings for more professional appearances;

*barndoor included:can rotate 360 degrees and adjust the positioning angle as desired;

*safety wires included;

*Power in powerCON/blue, Power out powerCON/grey equipped;

*blue LCD display;

*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;

*four dimming modes: linear, S-curve, Square law, Inverse square law;

*copper pipe plus silent fans for excellent ventilations;

*PFC electronic power supply;

*23°-44° marvelous smooth zooming with special sliding guiding system;

*Equipped with 1*LED WHITE:JAPAN MADE CITIZEN,MAX. 365W, 50,000 hours

*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;

*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;

*specially made fresnel lens equipped;

AC 100-240V 50/60Hz

Power consumption: 420W

23°-44° marvelous smooth zooming with special sliding guiding system;

Equipped with 1*LED WHITE:JAPAN MADE CITIZEN,MAX. 365W, 50,000 hours

2700K,3000K,3500K,4000K,5700K optional

0-100% linear dimming, separate strobe

DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity

5/7 DMX channel modes

Running temperature self controlling

Displaying off 5 seconds automatically after finishing sets of the fixture

Environmental temperature: -20℃ to 40℃

Hanging brackets included: floor stand with 4 rubber feet

Net weight: 14.10Kgs/Barndoor:1.10kgs

Dimensions: 441*386*464mm(L*W*D)(hanging bracket placed vertically)



DMX FUNCTIONS



5-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 –zooming
Channel 3 –dimmer modes selections
Channel 4 – reset
Channel 5 –dimmer durations
7-CHANNEL MODE
Channel 1 – white from darkness to full brightness
Channel 2 –zooming
Channel 3 –strobe
Channel 4 –color fades
Channel 5 –dimmer modes selections
Channel 6 – reset
Channel 7 –dimmer durations

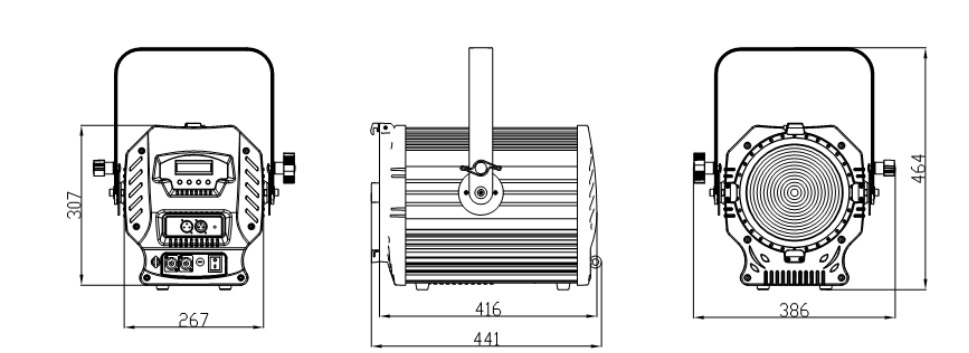

Dimensions(in mm)

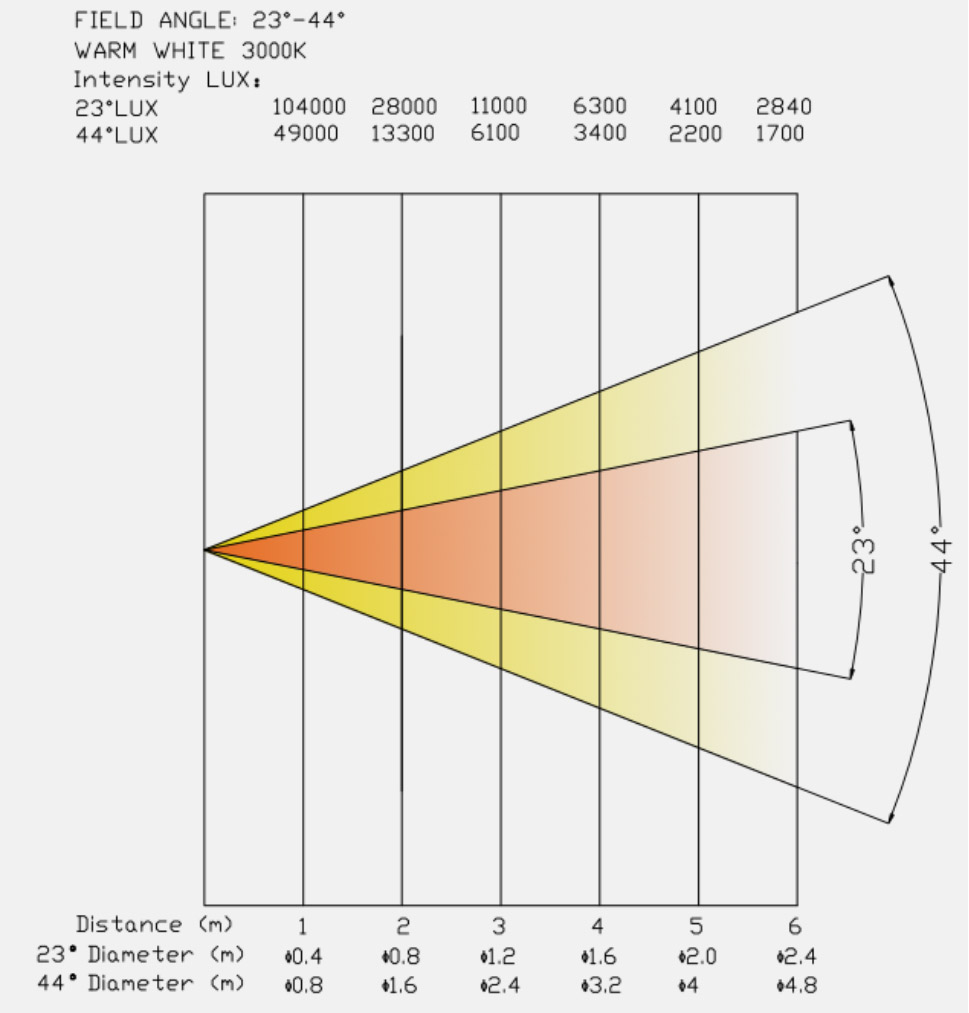

Lux chart:
