COB LED BLINDER 2 CW/WW
COB LED BLINDER 2 CW/WW is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index）：Ra:95
*projection can be adjusted from 0-70° as desired manually;
**safety wires included;
*Power in powerCON/blue, Power out powerCON/grey equipped;
*blue LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;
*four dimming modes: linear, S-curve, Square law, Inverse square law;
*molded aluminium plus silent fans for excellent ventilations;
*PFC electronic power supply;
*beam angle 53°,field angle 68°;
*Equipped with 2*LED COLD WHITE/WARM WHITE TWO IN ONE 100W , total 200W, 50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
*molded reflector for very even projections;
*molded decoration covering looking professional;
AC 100-240V 50/60Hz
Power consumption: 230W
beam angle 53°,field angle 68°
Equipped with 2*LED COLD WHITE/WARM WHITE TWO IN ONE 100W , total 200W, 50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto, sound active with adjustable sound sensitivity
8/10 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included: floor stand，the special aluminium fixing frames makes it possible to join two fixtures together during the installations.
Net weight: 5.85kgs
Dimensions: 415*229.5*218mm(L*W*D)(hanging bracket placed vertically)
INNER PACKING CARTON DIMENSIONS:48*30*29cm
GROSS WEIGHT:7.15kgs
DMX FUNCTIONS
8-CHANNEL MODE
Channel 1 – cold white I from darkness to full brightness
Channel 2 – warm white I from darkness to full brightness
Channel 3 – cold white II from darkness to full brightness
Channel 4 – warm white II from darkness to full brightness
Channel 5 – master dimmer from darkness to full brightness
Channel 6 –strobe
Channel 7 –dimmer mode selections
Channel 8 –dimmer duration
10-CHANNEL MODE
Channel 1 – cold white I from darkness to full brightness
Channel 2 – warm white I from darkness to full brightness
Channel 3 – cold white II from darkness to full brightness
Channel 4 – warm white II from darkness to full brightness
Channel 5 – master dimmer from darkness to full brightness
Channel 6 –strobe
Channel 7 –dimmer mode selections
Channel 8 –dimmer duration
Channel 9 –color changing
Channel 10 –color fades

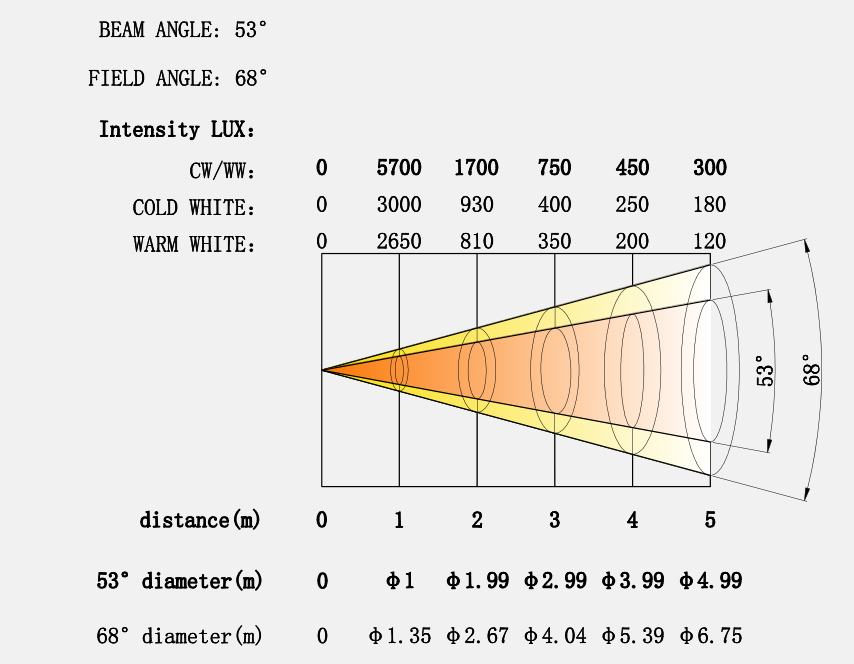

LUX CHART(照度图）：

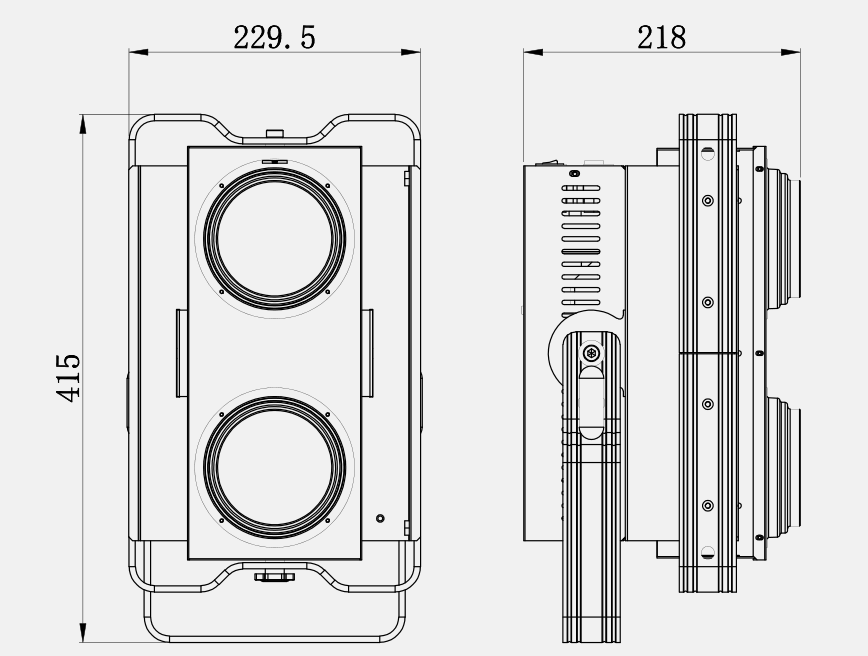

尺寸（DIMENSIONS):
