LED PROFILE 150

LED PROFIEL 150 is one of the classical COB LED fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,etc.
*CRI(Color Rendition Index):Ra:>95

*19°/26°/36°/50° beam angle optional

*Molded engineering ABS end housings for more professional appearances;

*Molded engineering ABS end housings for more professional appearances;

*color gel filter/gobo holders included;

*LED display;

*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free;

*molded aluminium plus silent fans for excellent ventilations;

*PFC electronic power supply;

*Equipped with COB LED WHITE 150W, 50,000 hours;

*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;

*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;

*professional convex,concave optical lens equipped;

*four shutters to shape the beam

*manual focus

AC 100-240V 50/60Hz

Power consumption:200W

Equipped with COB LED WHITE 150W, 50,000 hours

0-100% linear dimming, separate strobe

DMX 512 protocol, master/slave, auto

2/3/4 DMX channel modes

Running temperature self controlling

Displaying off 5 seconds automatically after finishing sets of the fixture

Environmental temperature: -20℃ to 40℃

Net weight:6.40 kgs

Dimensions: 645*355*470mm(L*W*D)(hanging bracket placed vertically)

INNER PACKING CARTON DIMENSIONS: 29*29*66cm

GROSS WEIGHT:7.40kgs



DMX FUNCTIONS



2-CHANNEL MODE
Channel 1 –white from darkness to full brightness
Channel 2 –dimmer durations

0-50              0 second

51-101            1 second

102-152           2 seconds

153-203           3 seconds

204-255           5 seconds

3-CHANNEL MODE
Channel 1 –white from darkness to full brightness
Channel 2 –dimmer durations

0-50              0 second

51-101            1 second

102-152           2 seconds

153-203           3 seconds

204-255           5 seconds

Channel 3 –strobe

0-2               not occupied

3-125             strobe from slow to fast

126-255           random strobe

4-CHANNEL MODE
Channel 1 –white from darkness to full brightness
Channel 2 –dimmer durations

0-50              0 second

51-101            1 second

102-152           2 seconds

153-203           3 seconds

204-255           5 seconds

Channel 3 –strobe

0-2               not occupied

3-125             strobe from slow to fast

126-255           random strobe

Channel 4 –color fades

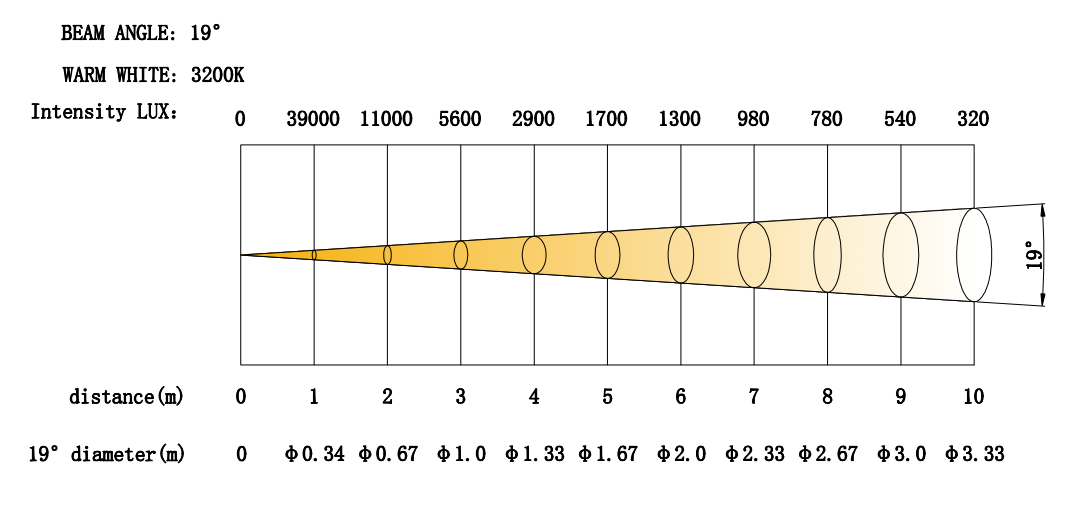

LUX CHART(照度图):

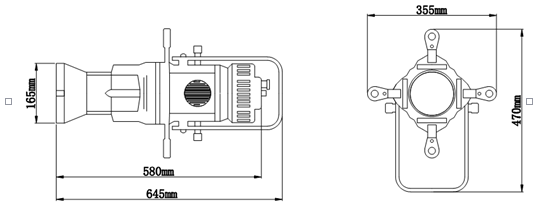

尺寸(DIMENSIONS):
