LED MOVING WASH 37 RGBW ZOOM
STAGE LIGHT
LED MOVING WASH: it can achieve color mixing,distribute evenly color light, play up colors and make application scenes gorgeous,magnificent. Zooming from 10° to 66° functions as beam and wash effects.The fixture functions pan 530°,tilt 280°, projecting all directions as desired.
LED MOVING WASH 37 RGBW ZOOM is one of the classical LED moving fixtures designed and created uniquely, really ideal for theaters, churches, TV studios, photography studios, fashion shows, stage performances, musical shows,color washing for indoor LED applications,etc.
*streamline housing making professional and magnificent
*professional Power in powerCON, Power out powerCON equipped
*LCD display;
*new PWM dimming electronical theory applied for reasonable fresh rates:max.23KHz and real flicker free;
*dimming modes: linear,square law,inverse square law, s-curve;
*PFC electronic power supply;
*10°-66° marvelous smooth zooming;
*Equipped with 37*high MCD 4 in 1 RGBW LED,max. 555W, 50,000 hours
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs;
*intelligent temperature self controlling: self adjusting temperature to protect at the time of max. temperature happening;
AC 100-240V 50/60Hz
Power consumption: max. 600W
*10°-66° marvelous smooth zooming;
*Equipped with 37*high MCD 4 in 1 RGBW LED,max. 555W, 50,000 hours
0-100% linear dimming, separate strobe
DMX 512 protocol, master/slave, auto
14/26 DMX channel modes
Running temperature self controlling
Displaying off 5 seconds automatically after finishing sets of the fixture
Environmental temperature: -20℃ to 40℃
Hanging brackets included:omega-holder with quick-lock fasteners
Net weight: 15.10kgs
Dimensions: 375*285*365mm(L*W*D)(front head placed vertically)
DMX FUNCTIONS
26-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Channel 4 - tilt fine 16 bit
Channel 5 - pan,tilt speed adjustment from fast to slow
Channel 6 -zooming from 10° to 66°
Channel 7 -reset
Channel 8 - master dimmer from 0-100%
Channel 9 - strobe
Channel 10 –ring 1 red dimmer from 0-100%
Channel 11 – ring 1 green dimmer from 0-100%
Channel 12 –ring 1 blue dimmer from 0-100%
Channel 13 –ring 1 white dimmer from 0-100%
Channel 14 –ring 1 colors
Channel 15 – ring 2 red dimmer from 0-100%
Channel 16 – ring 2 green dimmer from 0-100%
Channel 17 – ring 2 blue dimmer from 0-100%
Channel 18 – ring 2 white dimmer from 0-100%
Channel 19 – ring 2 colors
Channel 20 – ring 3 red dimmer from 0-100%
Channel 21 – ring 3 green dimmer from 0-100%
Channel 22 –ring 3 blue dimmer from 0-100%
Channel 23 –ring 3 white dimmer from 0-100%
Channel 24 –ring 3 colors
Channel 25 –preset ring 1/2/3 colors shows
Channel 26 –running speed adjustment from slow to fast
DMX MODE B:
14-channel mode
Channel 1 - pan movement (Pan)
Channel 2 - pan fine 16 bit
Channel 3 - Vertical movement (Tilt)
Channel 4 - tilt fine 16 bit
Channel 5 - pan,tilt speed adjustment from fast to slow
Channel 6 -zooming from 10° to 66°
Channel 7 -reset
Channel 8 - master dimmer from 0-100%
Channel 9 - strobe
Channel 10 –red dimmer from 0-100%
Channel 11 –green dimmer from 0-100%
Channel 12 –blue dimmer from 0-100%
Channel 13 –white dimmer from 0-100%
Channel 14 –color macros
LUX CHART(照度图）：

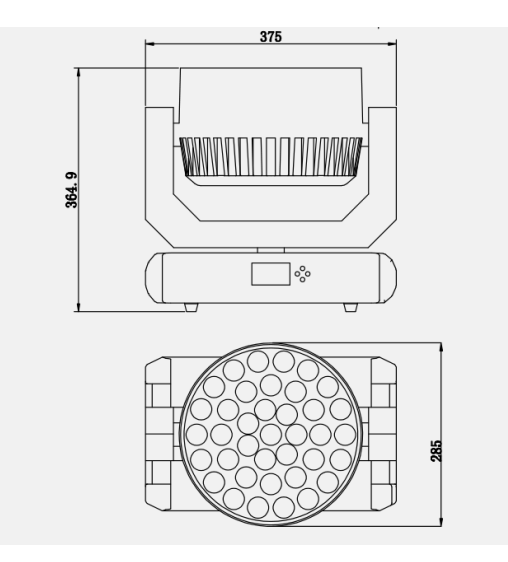

尺寸（DIMENSIONS):
